How to Generate a CSR for Microsoft IIS 5 & 6

The following instructions will guide you through the CSR generation process on Microsoft IIS 5 & 6. To learn more about CSRs and the importance of your private key, reference our Overview of Certificate Signing Request article. If you already generated the CSR and received your trusted SSL certificate, reference our SSL Installation Instructions and disregard the steps below.

1. Open Internet Information Services (IIS) Manager

Click Start, Control Panel, Administrative Tools, and then select Internet Information Services (IIS) Manager.

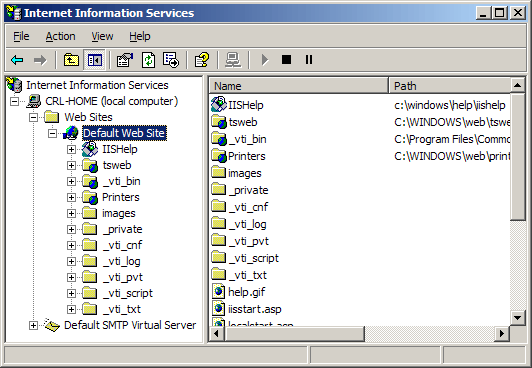

2. Navigate to Website Properties

In the left menu, click + next to your local computer and then Web Sites.

Right-click the website (i.e. Default Web Site) that you want to protect and click Properties.

MS IIS56 Step3

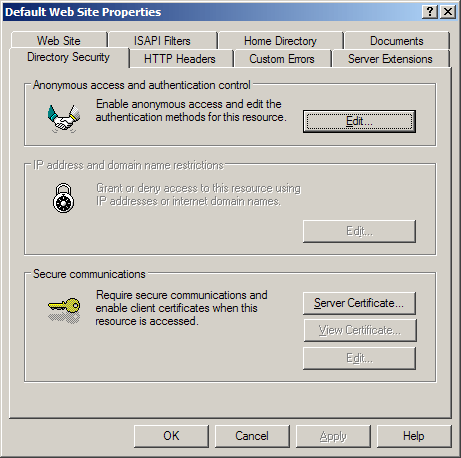

3. In Directory Security, select Server Certificates

In the Default Web Site Properties window, select the Directory Security tab, click Server Certificate…, and then Next.MS IIS56 Step4

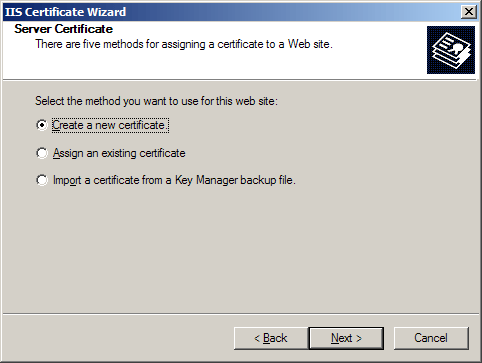

4. Select Create a New Certificate

Then click Next.

MS IIS56 Step5

Note: For renewing an existing SSL Certificate, select “Renew, Remove, or Replace your certificate” and skip to Step 7.

5. Select Prepare request now, but send it later

Then click Next.

MS IIS56 Step6

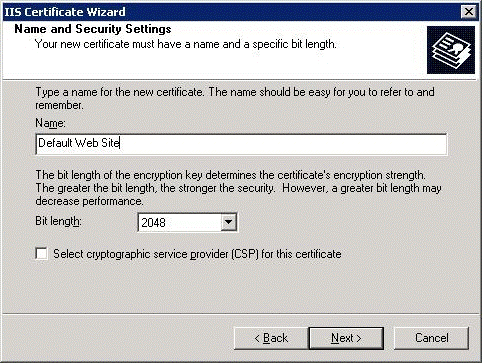

6. Enter a Friendly Name

Enter a friendly name for your certificate, select a Bit Length of 2048, and click Next, without checking the boxes. MS IIS56 Step7

Note: Please name the certificate something you can easily recognize in the future. This will only be an internal reference name and will not be part of your SSL certificate.

7. Follow the wizard to enter in your organization and website information

Enter your legally incorporated Organization Name and Organizational Unit such as “IT Security” and click Next.

MS IIS56 Step8

Enter your Common Name which will be the FQDN (fully qualified domain name) on your SSL certificate.

MS IIS56 Step9

Note: For Wildcard Certificates, you must add the asterisk symbol in the left furthest sub-domain (i.e. *.domainname.com) which is what enables an unlimited number of coverage at that specific level.

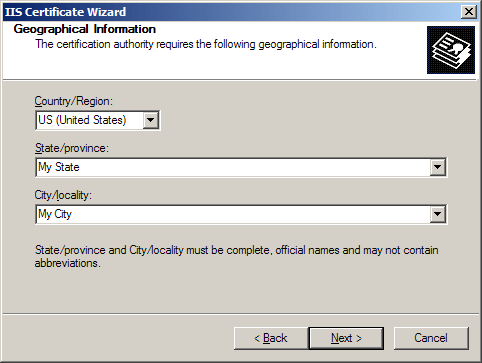

Select the Geographic Location for your company and click Next.MS IIS56 Step10

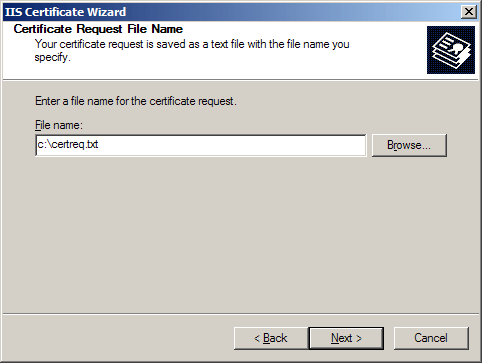

8. Save the CSR

Click Browse to specify the location where you want to save the CSR as a “.txt” file and click Next.

MS IIS56 Step11

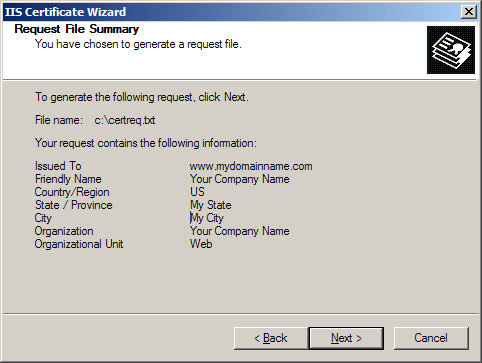

9. Finish

Review the Request File Summary and if changes are required, click Finish.

MS IIS56 Step12

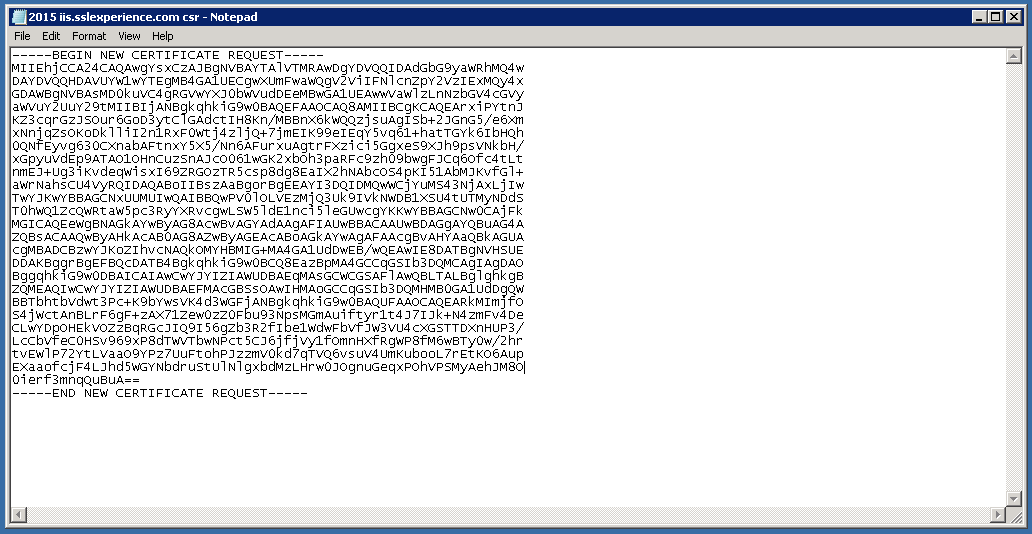

10. Generate the Order

Locate and open the newly created CSR from the specified location you choose in a text editor such as Notepad and copy all the text including:

-----BEGIN CERTIFICATE REQUEST-----
And
-----END CERTIFICATE REQUEST-----

MS IIS56 Step13

Return to the Generation Form on our website and paste the entire CSR into the blank text box and continue with completing the generation process.

Upon generating your CSR, your order will enter the validation process with the issuing Certificate Authority (CA) and require the certificate requester to complete some form of validation depending on the certificate purchased. For information regarding the different levels of the validation process and how to satisfy the industry requirements, reference our validation articles.

After you complete the validation process and receive the trusted SSL Certificate from the issuing Certificate Authority (CA), proceed with the next step using our SSL Installation Instructions for Microsoft IIS 5 & 6.
